Description
Hino XL8 (62,000 GVW)
Specifications
Manufacturer
Hino
Model
XL8 (62,000 GVW)
Year
2025
Category
Trucks
Subcategory
XL Series
Configuration
Inline 6 Cylinder
Weight (Dry)
1695 lb (769 kg)
Service Fill (Oil & Filter Change)
29 qt (27.4 L)
Turbocharger
Variable Geometry Turbocharger w/integrated engine braking
Fuel System
Bosch Common rail, direct injection
Emissions system
Cooled EGR with Single Module Aftertreatment
Transmission
Allison six speed automatic with neutral at stop (NAS) and coast mode
Front & rear axles
Dana Spicer (Rear-multiple axle ratios available)
Batteries
STD Two, parallel connection, 1200 CCA (GR 31) (OPT Multiple two battery choices, OPT Multiple three battery choices)
Alternator
STD 12V, 130A, Delco (brush) [(OPT 12V, 135A (brushless)), (OPT 160A (brush)), (OPT 200A (brush))]
Starter
Denso-12V, 4.8kW
Fuel Tank (gallons)
STD single 50 (OPT single 90)
DEF tank (gallons)
STD 7.4
Transmission mode
STD 3000 RDS (OPT 3000 HS, OPT 3500 RDS)
Brakes
STD Air S-cam drum (OPT Air disc)
Front axle/susp. lbs
STD 12,000 (OPT 13,200, OPT 14,000, OPT 14,600, OPT 16,000)
Wheel type (22.5”)
STD Powder coated white (OPT Aluminum Accuride or Alcoa)
Frame yeild strength
STD 120K PSI (1.9 M RBM), (STD 120K PSI (2.1 M RBM)) [OPT 120K PSI (2.6 M RBM), OPT Double frame 120K PSI(3.8 M RBM)]
Rear axle/susp. lbs (Single Axle (4x2))
STD 21,000 (OPT 23,000)
Rear axle/susp. lbs (Tandem Axle (6x4))
OPT 40,000 (OPT 46,000)
Displacement
543 cu in (8.9L)
Bore
4.4 in (114 mm)
Stroke
5.7 in (145 mm)
Horsepower Range
300 - 360 hp
Torque Range
860 - 1150 lb-ft

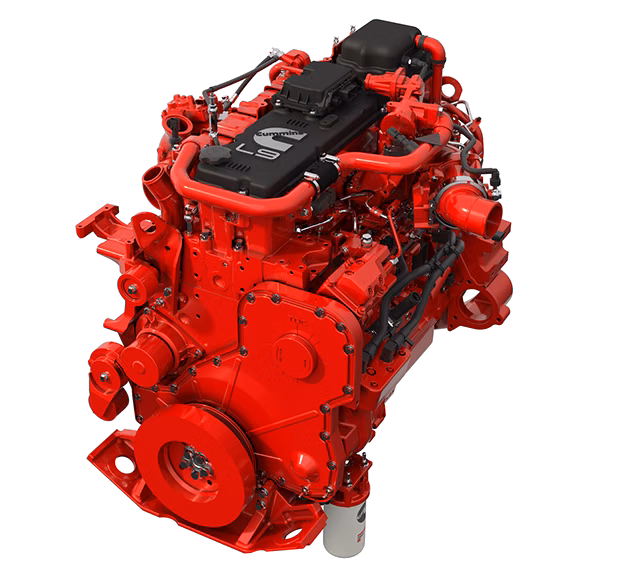

Engine Model
Cummins L9
Engine Type
Diesel 4 cycle, 6 cylinder in-line, water-cooled, wet cylinder lined
Bore & Stroke
4.49 in x 5.71 in
Max. output @ 2,200 rpm
300-360hp
Max. torque @ 1,200 rpm
860-1,150 lb-ft
Engine HP
STD L9 300hp (OPT L9 330hp, OPT L9 360hp)
Driveline
Dana Spicer SPL 170
